Уплотнения круглого сечения
Изделия выполнены из NBR(нитрильный каучук, nitril, perbunan), FPM (фторкаучук), MVQ (silikon, силикон), EPDM (этилен-пропиленовый каучук) |

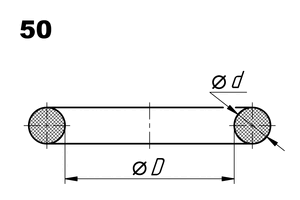

Артикул | Материал | Масса (г) | Стандарт | D, d |
---|---|---|---|---|
50-0430-0300 | NBR 88 | - | - | D=43, d=3 |
50-0410-0262 | NBR 88 | - | - | D=41, d=2.62 |
50-0170-0150 | NBR 88 | - | - | D=17, d=1.5 |
50-0590-0340 | EPDM70 | - | - | D=59, d=3.4 |
50-0940-0530 | EPDM70 | - | - | D=94, d=5.3 |
50-0011-0127 | EPDM 70 | - | AS568В | D=1.1, d=1.27 |
50-0012-0100 | NBR 70 | - | - | D=1.2, d=1 |
50-0012-0262 | EPDM 70 | - | ISO 3601 | D=1.24, d=2.62 |
50-0014-0152 | EPDM 70 | - | AS568В | D=1.42, d=1.52 |
50-0014-0153 | EPDM 70 | - | BS1806 | D=1.42, d=1.53 |
50-0016-0220 | EPDM 70 | - | - | D=1.6, d=2.2 |
50-0017-0180 | - | - | - | D=1.7, d=1.8 |
50-0018-0012 | NBR 88 | - | - | D=1.8, d=1.0 |
50-0018-0102 | EPDM 70 | - | BS | D=1.78, d=1.02 |
50-0018-0120 | NBR 88 | - | - | D=1.8, d=1.2 |
50-0018-0178 | NBR 88 | - | - | D=1.8, d=1.78 |
50-0018-0180 | EPDM 70 | - | DIN 3771 | D=1.8, d=1.8 |
50-0020-0100 | NBR 88 | - | - | D=2, d=1 |
50-0020-0150 | NBR 88 | - | - | D=2, d=1.5 |
50-0020-0180 | EPDM 70 | - | DIN 3771 | D=2, d=1.8 |
50-0020-0250 | - | - | - | D=2, d=2.5 |
50-0020-0262 | EPDM 70 | - | - | D=2, d=2.62 |
50-0021-0260 | EPDM 70 | - | - | D=2.1, d=2.6 |
50-0021-0262 | EPDM 70 | - | ISO 3601 | D=2.06, d=2.62 |
50-0022-0160 | EPDM 70 | - | LJFR | D=2.2, d=1.6 |
50-0022-0180 | EPDM 70 | - | DIN 3771 | D=2.2, d=1.8 |
50-0024-0190 | EPDM 70 | - | LJFR | D=2.4, d=1.9 |
50-0025-0100 | - | - | - | D=2.5, d=1 |
50-0025-0102 | EPDM 70 | - | BS | D=2.54, d=1.02 |
50-0025-0120 | NBR 88 | - | - | D=2.5, d=1.2 |
50-0025-0130 | EPDM 70 | - | - | D=2.5, d=1.3 |
50-0025-0150 | - | - | - | D=2.5, d=1.5 |
50-0025-0178 | EPDM 70 | - | - | D=2.5, d=1.78 |
50-0025-0180 | EPDM 70 | - | DIN 3771 | D=2.5, d=1.8 |
50-0025-0250 | EPDM 70 | - | - | D=2.5, d=2.5 |
50-0026-0130 | NBR 88 | - | - | D=2.6, d=1.3 |
50-0026-0170 | NBR 88 | - | - | D=2.6, d=1.7 |
50-0026-0178 | NBR 88 | - | - | D=2.6, d=1.78 |
50-0026-0190 | NBR 88 | - | - | D=2.6, d=1.9 |
50-0026-0200 | NBR 88 | - | - | D=2.6, d=2 |
50-0026-0300 | EPDM 70 | - | - | D=2.6, d=3 |
50-0028-0140 | EPDM 70 | - | ГОСТ 9833-73 | D=2.8, d=1.4 |
50-0028-0160 | NBR 88 | - | - | D=2.8, d=1.6 |
50-0028-0180 | EPDM 70 | - | DIN 3771 | D=2.8, d=1.8 |
50-0028-0190 | EPDM 70 | - | ГОСТ 9833-73 | D=2.8, d=1.9 |
50-0028-0240 | - | - | - | D=2.8, d=2.4 |
50-0028-0262 | EPDM 70 | - | ISO 3601 | D=2.84, d=2.62 |
50-0029-0178 | NBR 88 | - | - | D=2.9, d=1.78 |
50-0030-0100 | NBR 88 | - | - | D=3, d=1 |
50-0030-0120 | NBR 88 | - | - | D=3, d=1.2 |
